Articulating boom lift rental - from 10 to over 48 metres

When obstacles need to be bridged, awkward areas reached or working heights beyond 20 metres are required, the articulating boom lift is the machine of choice. Luibl Rental & Sales rents articulating boom lifts with working heights from 10 to over 48 metres - available with electric, diesel and hybrid drive, delivered by our own low-loader throughout the Netherlands. On site you will also hear the same machine called a knuckle boom, articulated boom or articulating telescopic platform - all of them mean the aerial work platform with an articulated boom discussed here. How the articulating boom lift differs from scissor, telescopic and mast lifts is explained in the overview Aerial platform rental; all types in the rental fleet can be found under Aerial work platform rental.

An articulating boom lift combines two principles: the jointed articulated boom with a telescopic boom for additional reach. The result is the so-called up-and-over effect: the basket is first raised vertically, then tilted over an obstacle and finally extended telescopically - positioned precisely at the target. This makes the articulating boom lift the first choice for pipework, building projections, industrial racking or structures that telescopic boom lifts or scissor lifts cannot get past. This articulated boom is also the reason for the name knuckle boom - the rental of articulating boom lifts is one of the most requested areas of access equipment at Luibl.

Telescopic boom lifts work with a straight boom and are ideal for long, straight reaches on open ground. Articulating boom lifts are the right choice as soon as obstacles are in the way or the work area has to be approached from an offset position. They can reach the same working point from different angles - a clear advantage for facade work or in cramped industrial halls. For purely vertical work on level ground, scissor lifts are often the more cost-efficient alternative.

Within this type, four factors determine the right machine:

1. How high and how far to the side? With this type, outreach often matters more than working height alone - it determines how far from the set-up position you can work without moving the machine. More weight in the basket reduces the permissible outreach.

2. Indoors or outdoors? For halls, production areas and noise-sensitive environments, the electric articulating boom lift is the choice - no local emissions and low noise. Outdoors and on unpaved ground, the diesel version with four-wheel drive takes over.

3. Do conditions change during the project? Then the hybrid articulating boom lift combines both: diesel for travelling on rough ground, electric for work without local emissions in the hall.

4. Do you need the articulated boom at all? If the working point is freely accessible from below, a scissor lift is usually the more cost-efficient solution. If only straight reach at great height counts, the telescopic boom lift is the faster machine.

Machines in this class weigh up to 21 tonnes. Clarify the access route, the space for unloading and the permissible point load at the set-up location in advance - this prevents the most common cause of delays on site.

Luibl Rental relies on machines from Genie, JLG, Manitou, Magni and Niftylift. The rental fleet covers working heights from 10 to 48.15 metres and basket loads from 200 to 450 kg.

Electric articulating boom lifts for indoor applications

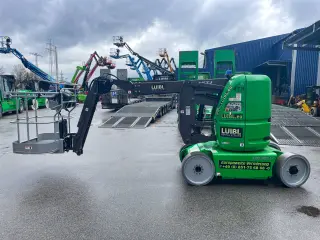

Electric platforms work without local emissions and with low noise - ideal for factories, logistics centres or public buildings. Non-marking tyres protect sensitive floors. Typical models: Manitou 120 AETJ-C 3D (11.95 m), Manitou 200 ATJ e (20.00 m), Genie Z40/23 N RJ (14.32 m).

Diesel articulating boom lifts for difficult terrain

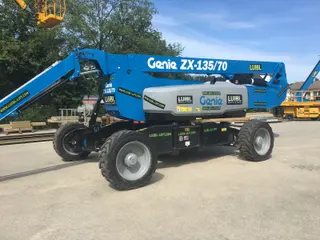

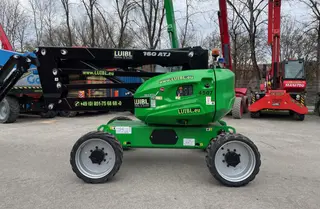

Diesel models with 4x4 drive and an oscillating axle handle gradients of up to 45 % and difficult ground. Typical models: Manitou 160 ATJ (16.02 m), Genie ZX-135/70 (43.15 m), JLG 1500AJP (48.15 m, 450 kg basket load).

Hybrid articulating boom lifts for flexible use

Hybrid models combine electric and diesel drive - usable indoors and outdoors without conversion. Typical models: Niftylift HR 21 Hybrid (20.80 m), Niftylift HR 28 Hybrid (28.00 m), Genie Z60/37FE (20.16 m).

For an articulating boom lift, working height alone says little. What matters is the combination of working height, outreach and permissible basket load. The table shows a selection from our rental fleet - from the compact indoor machine to the largest articulating boom lift in our fleet.

How to read the values:

• Working height is the platform height plus 2 metres - the height at which a person standing in the basket works.
• Outreach is the maximum horizontal reach according to the manufacturer. It is usually not achieved at full height; the reach diagram of the respective model is what counts for your working point.
• Basket load covers everything in the basket: people, tools and material combined.

Within the same height class, the machines differ considerably. At around 20 metres working height, outreach ranges from 11.15 m (Genie Z60/37FE) to 13.00 m (Niftylift HR 21 Hybrid). Anyone who needs to lift more than 250 kg will end up with the Genie Z45FE (300 kg), the Niftylift HR 28 Hybrid (280 kg) or the JLG 1500AJP (450 kg).

The articulating boom lift has the advantage whenever the machine cannot stand directly below the working point. Typical scenarios:

Facade and building envelope

Canopies, balconies, bay windows or planting in front of the building prevent a platform from driving straight up to the facade. The articulated boom reaches over these obstacles and brings the basket close to the wall - for facade installation, window connections, sealing, cleaning or renovation. Where scaffolding does not pay off for short work sections, the articulating boom lift is often the faster and more economical solution.

Plant engineering and industry

Pipe bridges, cable trays, ventilation ducts and machines stand close together in production halls. Here it matters that the basket can be guided over and between plant components. Electric and hybrid models work without local emissions, and non-marking tyres protect the hall floor - important for maintenance, conversion and installation during ongoing operations.

Steel construction, hall and stadium construction

When installing roof girders, grandstand structures or lighting and sound systems, great working heights meet lateral offset. On unpaved sites, diesel models with four-wheel drive take over; on the finished hall floor, the electric or hybrid version.

Maintenance and facility management

Inspection, cleaning and repair of roofs, gutters, lighting and building services often take place in courtyards or along narrow access routes. This is where compact electric machines from 10.89 m working height play to their strengths.

Events and trade fairs

For setting up and dismantling rigging, lighting and stage technology in halls, quiet electric models without local emissions are the usual choice.

A typical industrial scenario shows how the selection works in practice. It is an example of job planning, not an individual customer case.

The starting point: On a pipe bridge at a height of 14 metres, brackets and insulation need to be replaced. The pipe bridge runs above a driving aisle, with plant components on the left and right. The machine can only be set up about seven metres to the side. Two people work with hand tools, and the hall remains in operation.

The selection in four steps:

1. Height: 14 m working point plus reserve - so the class from around 16 m working height is an option.
2. Outreach: A good seven metres of offset at a height of 14 m rules out the compact indoor machines. Whether a model can cover that distance at this height is only shown by the reach diagram - the maximum outreach usually does not apply at full height.
3. Basket load: Two people with tools need a basket load well above 200 kg.
4. Environment: Hall in ongoing operation - so electric or hybrid with non-marking tyres.

The result: An electric articulating boom lift of the 17 m class such as the Manitou 170 AETJ-L (16.90 m working height, 9.43 m outreach, 230 kg basket load) is an option; with more reserve in height and offset, the Manitou 200 ATJ e (20.00 m, 11.57 m). If heavy components also have to go in the basket, the choice shifts to a model with a higher basket load. The Genie Z45FE carries 300 kg, but with 6.94 m it does not reach far enough to the side - then the set-up position must be closer to the pipe bridge or a larger machine is needed.

Clarified before delivery: access and clearance height, load-bearing capacity of the hall floor at the set-up position and the cordoning-off of the work area. With this information you receive a quote that fits the task - not just the working height.

Luibl Rental has its own fleet of low-loaders. This means: no dependence on third-party hauliers, direct coordination of delivery date and set-up position, and delivery to your site on the agreed date. Transporting articulating boom lifts weighing up to 21 tonnes requires specialised equipment - this is standard at Luibl. Whether short-term or long-term rental - delivery takes place throughout the Netherlands.

Operating aerial work platforms requires the necessary operator competence in line with applicable Dutch health and safety rules. The operator must receive theoretical and practical instruction in handling the specific machine. All Luibl machines leave the depot after periodic inspection of work equipment under the Working Conditions Decree and come with complete technical documentation. On handover, we brief the operator on the machine.

Articulating boom lifts are technically more complex than purely vertical platforms - so the rental price varies more widely. These factors determine it:

• Working height and outreach: There are several classes between the 12 m electric machine for the hall and the 48 m diesel articulating boom lift for outdoor use. Outreach often matters more than height alone.
• Drive: Electric for indoor work without local emissions, diesel with four-wheel drive for rough terrain, hybrid for jobs that require both.
• Rental period: Daily, weekly and monthly rates are tiered; for longer projects, long-term rental with its own terms pays off.
• Transport: Machines in this class weigh up to 21 tonnes and require specialised transport equipment. Delivery is made by our own low-loader to your site and is shown separately from the machine rental.
• Additional services: Machinery breakdown insurance and on-site briefing are calculated separately.

Included are an inspected machine with valid periodic inspection, maintenance during the rental period and technical advice on selection. With details of working height, required outreach, ground conditions, rental period and location, you receive an itemised quote.
