Heavy-duty forklift rental - powerhouses for industry and cargo handling

When loads of more than 8 tonnes have to be moved regularly, a standard counterbalance forklift is no longer enough. Heavy-duty forklifts have reinforced masts, more powerful hydraulics and greater stability - designed for steel construction, precast concrete elements, machine components and container handling. At Luibl you can rent heavy-duty forklifts from Kalmar and Hyundai with load capacities of 8 to 33 tonnes. Delivery throughout the Netherlands with our own low-loader fleet.

The threshold for a heavy-duty forklift lies where standard industrial forklifts (usually up to 5 tonnes load capacity) reach their rated capacity. Projects in the metal industry, precast concrete construction, steel processing or port handling regularly work with loads between 8 and 18 tonnes - here a heavy-duty forklift is a must, not an option.

Typical applications:

• Metal and steel construction: Loading of steel beams, coils, prefabricated parts and semi-finished products. With these goods the load centre is often far in front of the fork tip - which reduces the residual capacity and requires an appropriately rated machine.

• Precast concrete and building materials industry: Transport of precast concrete elements, natural stone blocks and heavy pallets. Often on unpaved plant grounds with slopes and ramps.

• Port and transhipment terminals: Loading and unloading of trucks, wagons and containers. Here, heavy-duty forklifts often replace the reach stacker in the second handling row.

• Machine tool construction and heavy industry: In-plant transport of machine assemblies, tool moulds and press parts. These jobs often take place on hall floors with a defined load-bearing capacity.

• Recycling and timber industry: Handling of steel scrap, logs and paper bales. High stress due to continuous operation and rough loads.

The decision for a heavy-duty forklift does not depend on mass alone. The load centre, lift height, fork length and the ground bearing capacity at the job site also determine which machine is suitable.

In the heavy-duty category, Luibl covers the 8 t, 10 t, 16 t and 18 t capacity classes with six specific models. The focus is on Kalmar - the worldwide reference in the heavy-duty forklift segment - complemented by Hyundai and EP.

The entry class: 8 to 10 tonnes

Hyundai 80D-9 (8 t diesel): The diesel drive is the classic choice for outdoor areas and mixed indoor/yard operation. With a fork length from 6,000 mm and a rated capacity of 8 tonnes, the Hyundai 80D-9 covers typical heavy-duty tasks in steel trading and at recycling yards.

Kalmar ECF 80-9 (8 t electric): For indoor operation with emission requirements - for example in the food industry, pharmaceutical production or paper processing. The electric drive works with no local emissions and considerably more quietly than comparable diesel machines. 8 tonnes load capacity at 3,450 mm lift height.

EP EFL 1002 (10 t electric): The next step in the electric version with 10 tonnes load capacity and 5,000 mm lift height. Demand for electric heavy-duty forklifts is rising significantly - both for emission reasons and because of lower operating costs in continuous use.

The heavyweights: 16 to 33 tonnes

Hyundai 160D-9 (16 t diesel): 16 tonnes load capacity at 4,500 mm lift height. Typically used for in-plant handling, container loading or heavy pallets outdoors. Robust diesel drive technology designed for continuous use.

Kalmar DCG 160-12T (16 t diesel): Kalmar is regarded as the world market leader in heavy-duty forklifts. The DCG 160-12T works with 16 tonnes load capacity at 4,500 mm lift height and a load centre distance of 1,200 mm - relevant for precast concrete elements and large-format loads. A rear-view camera, ergonomic workstation and optimised cylinder arrangement improve forward visibility.

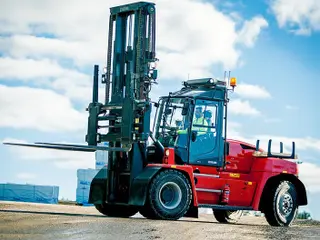

Kalmar DCG 180-6T (18 t diesel): The top rental model: 18 tonnes at 4,500 mm lift height, load centre 600 mm. The shorter load centre shows that this machine is designed for compact, very heavy loads - steel blocks, press moulds, tools. Despite the high rated capacity, the dimensions remain manageable; the turning circle allows use in factory halls with normal traffic areas.

For even higher loads: Luibl also rents out the Manitou MHT 10200 heavy-duty telehandler with 20 tonnes load capacity. Formally this machine is not a counterbalance forklift but belongs to the telehandler category, and in return it also reaches greater lift heights and more outreach. The MHT is the first choice when classic forklift geometry is not sufficient.

Choosing a heavy-duty forklift comes down to five technical parameters. Anyone who does not clarify them properly risks a machine that is either oversized or - more dangerously - undersized at the job site.

Rated capacity and load centre: The load capacity stated on the rating plate always applies to a defined load centre distance - usually 600 mm or 1,200 mm. If the load is picked up further forward, the residual capacity can drop drastically. Precast concrete elements, steel plates and bulky machine assemblies often have considerably longer load centres. What counts here is the load chart of the respective machine - not the capacity figure in the brochure.

Lift height and overall height: In addition to the actual lift height (maximum distance from fork level to the floor), the overall height of the mast when lowered is relevant. Door heights, hall roof structures and passages between production areas define the upper limit. A free-lift mast allows lifting without extending the mast - important in halls with limited ceiling height.

Fork length: Standard forks on 8 t forklifts are 1,200-1,500 mm long, on 16-18 t models 1,800-2,500 mm. Longer forks are needed for coils, large pallets and long goods. Luibl offers suitable accessories for rent: fork extensions, coil rams and load backrests.

Drive type: Diesel delivers torque and continuous power for outdoor use. Electric is a must in emission-sensitive environments and shows its advantages in multi-shift indoor operation. For mixed operation the industry also offers bi-energy models - Luibl's heavy-duty portfolio currently includes diesel and electric versions.

Ground conditions: An 18-tonner weighs around 25 to 30 tonnes even when empty. Then there is the load. The ground bearing capacity at the job site - hall, loading ramp, outdoor area - must be checked before delivery. Luibl assists with the assessment; the limit values can be found in the machine's data sheet under point load per wheel.

Transporting a heavy-duty forklift is a logistics project in itself. With dead weights of 15 to over 25 tonnes and widths of more than 2.5 metres, only heavy-duty low-loaders are an option - often with a special permit for the transport route.

Luibl operates its own low-loader fleet, designed precisely for these requirements. This makes delivery independent of external hauliers and reduces the risk of rescheduled appointments. For the rental period this means plannable delivery dates, agreed collection and - if necessary - prompt replacement in the event of technical faults.

The delivery area covers: the Netherlands, Germany, Austria, Switzerland, Poland, the Czech Republic, Italy, Hungary and other European countries. For locations with port or plant connections - such as Rotterdam, Amsterdam or the industrial regions around Eindhoven and Tilburg - delivery usually takes place at short notice.

During the rental:

• On-site technical support: If required, Luibl sends a service technician directly to the site or the plant. This minimises downtime caused by operating errors or technical problems.

• Long-term rental terms: For projects lasting several months, periodic inspection of work equipment and annual maintenance are included in the contract.

• One contact person: For heavy-duty forklifts, telehandlers, aerial work platforms and standard forklifts - no parallel contracts with different rental companies.

As industrial trucks, heavy-duty forklifts are subject to Dutch occupational health and safety legislation (Working Conditions Act and Working Conditions Decree) and in particular to the Working Conditions Decree, Chapter 7 (work equipment). This results in specific obligations for operators and hirers.

Periodic inspection: As part of the periodic inspection of work equipment under the Working Conditions Decree, all Luibl rental machines are inspected in accordance with FEM 4.004 - focusing on the hydraulic system, mast, lifting frame, brakes and safety devices. The inspection sticker is clearly displayed on every machine. For long-term rentals, Luibl renews the inspection during the ongoing rental agreement.

Daily check by the operator: A visual and functional check is recommended before every shift - tyres, oil level, hydraulic lines, lighting and warning devices. Luibl provides the corresponding checklist on handover.

Briefing on handover: For complex machines - especially from 16 tonnes load capacity - Luibl staff provide a personal briefing on request. This covers the load chart, the operating concept, the safety devices and the special features of the specific model.

Workplace-specific risk assessment: Under Dutch occupational health and safety legislation, responsibility for the risk assessment lies with the operator of the job site. The rental company supplies the technical documentation; the job-specific assessment - for example of ground bearing capacity, travel routes and load handling - must be carried out by the company itself.

The demonstrable competence of the forklift operator is to be ensured by the employer. Luibl provides an operator briefing on the rented machine on handover.

Choosing the right heavy-duty forklift is not a catalogue click but a planning question: load capacity, load centre, lift height, drive, ground conditions and rental period all interact. A consultation with Luibl brings the right machine to the job site - including low-loader logistics, periodic inspection and technical support throughout the entire rental period.
