GTE-200 | Manitou 200 ATJ e

Bild 0 einer Mietmaschine vom Typ GTE-200 | Manitou 200 ATJ eBild 1 einer Mietmaschine vom Typ GTE-200 | Manitou 200 ATJ eBild 2 einer Mietmaschine vom Typ GTE-200 | Manitou 200 ATJ e
Vorschaubild 0 einer Mietmaschine vom Typ GTE-200 | Manitou 200 ATJ eVorschaubild 1 einer Mietmaschine vom Typ GTE-200 | Manitou 200 ATJ eVorschaubild 2 einer Mietmaschine vom Typ GTE-200 | Manitou 200 ATJ e

Technical data

Below you will find all product details.

Working height
20,00 m
Lifting capacity
230 kg
Lateral reach
11,57 m
Platform height
18,00 m
Dimensions
6,06 m x 2,32 m x 2,46 m
Weight
7.100 kg
Make
Manitou
Model
200 ATJ e
Drive unit
Electric
Article designation
GTE-200

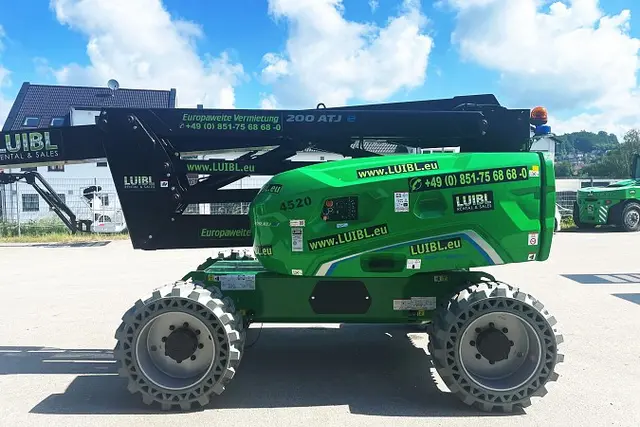

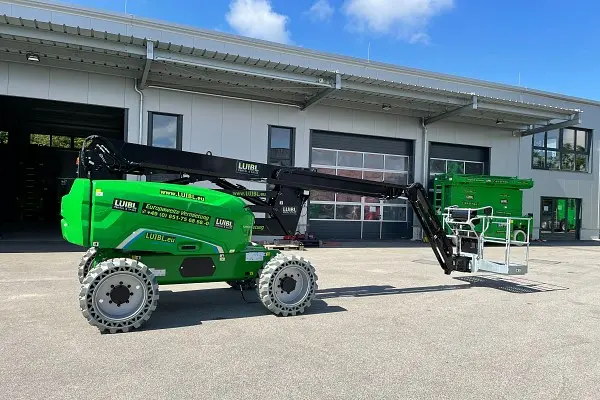

GTE-200 | Manitou 200 ATJ e – articulating boom lift

Articulating boom lift 20 m 200 ATJ e

This articulating boom lift from Manitou is equipped with an electric drive. This allows the lift to be used indoors. The articulating lift can be used both indoors and outdoors. Thanks to its compact design, it is also very flexible and can manoeuvre without difficulty. The maximum platform height is 18 metres. The articulating lift has a maximum load capacity of 230 kg. This maximum load capacity should not be exceeded, as otherwise unintended damage to the machine may occur. Hire an articulating boom lift now.

Hire the Manitou articulating boom lift with around 20 metres

The articulating lift can climb gradients of up to 22%. Hiring an electrically powered articulating boom lift like this is very simple and reliable. In addition, the 200ATJ-e has a very generous platform for its size, allowing up to 2 people to stand on it at the same time. The built-in electric motor offers plenty of power for its size. With the articulating boom, you can also reach positions that are difficult to access. The articulating lift is suitable for jobs at medium height. The articulating lift also has a highly visible red colour.

If you are interested, please get in touch with us!

Are you interested in the 200 ATJ e articulating boom lift? We will be happy to discuss the job with you and prepare an individual quote. Use this Manitou lift for your project as well. Our rental team looks forward to hearing from you!

Key technical data

  • Working height: 20 m
  • Load capacity: 230 kg
  • Lateral reach: 11.57 m
  • Width: 2.32 m
  • Height: 2.46 m

Use and benefits

The electric drive enables operation without exhaust emissions on site.

Check availability and request a quote now.
