RMK-1908 | Maeda CC1908

Bild 0 einer Mietmaschine vom Typ RMK-1908 | Maeda CC1908Bild 1 einer Mietmaschine vom Typ RMK-1908 | Maeda CC1908Bild 2 einer Mietmaschine vom Typ RMK-1908 | Maeda CC1908Bild 3 einer Mietmaschine vom Typ RMK-1908 | Maeda CC1908
Vorschaubild 0 einer Mietmaschine vom Typ RMK-1908 | Maeda CC1908Vorschaubild 1 einer Mietmaschine vom Typ RMK-1908 | Maeda CC1908Vorschaubild 2 einer Mietmaschine vom Typ RMK-1908 | Maeda CC1908Vorschaubild 3 einer Mietmaschine vom Typ RMK-1908 | Maeda CC1908

Technical data

Below you will find all product details.

Lifting height
20,10 m
Lifting capacity
8.100 kg
Lateral reach
19,20 m
Dimensions
3,015 m x 2,49 m x 7,38 m
Weight
19.400 kg
Make
Maeda
Model
CC1908
Article designation
RMK-1908

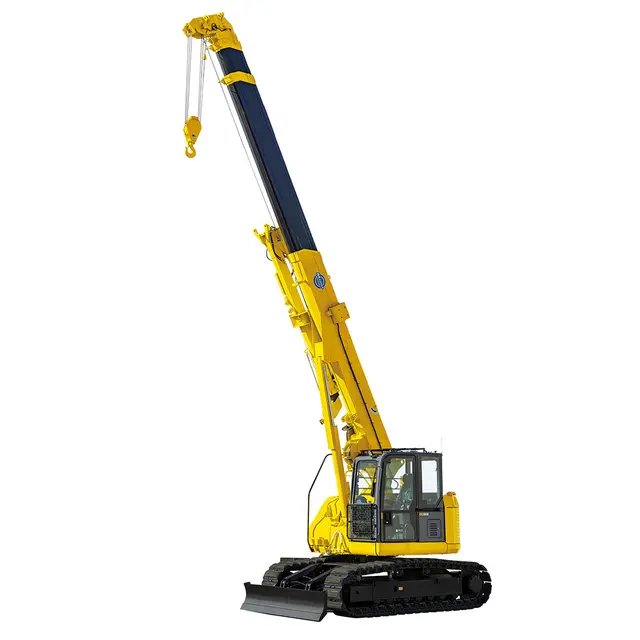

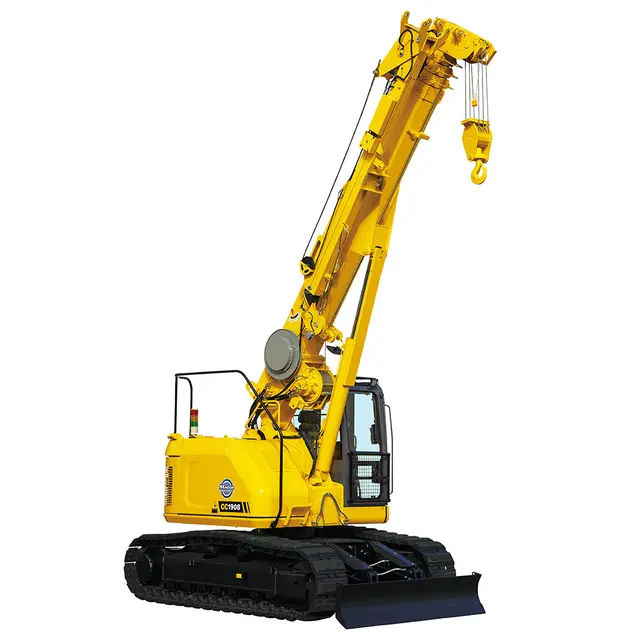

Maeda CC1908 hire – telescopic crawler mini crane in the 8-tonne class with pick & carry

The Maeda CC1908 is a telescopic crawler crane from the Maeda CC crawler series: 8,100 kg lifting capacity, 3,500 kg travelling freely – without any outriggers. Luibl Rental delivers the machine serviced and inspected directly to your site.

Technical data

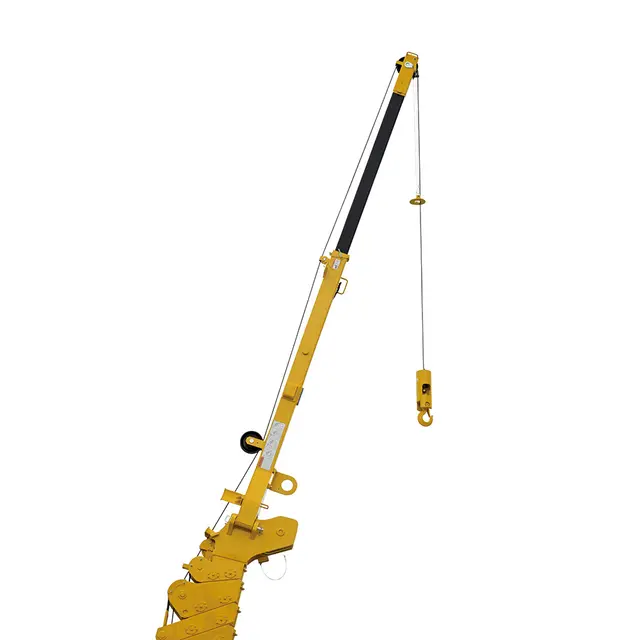

The CC1908 carries a fully automatic, 5-section telescopic boom with a maximum hook height of 20.1 m. With the optional fully hydraulic fly jib, the hook height increases to 26.0 m. The machine is powered by a Yanmar diesel engine. Operating weight: approx. 19,400 kg.

Key data at a glance:

  • Maximum lifting capacity: 8,100 kg at 2.8 m radius

  • Pick & carry: 3,500 kg, load can be travelled on the hook

  • Max. hook height: 20.1 m, 26.0 m with fly jib

  • Maximum radius: 19.23 m at 340 kg

  • Tail swing radius: 1,670 mm

  • Operating weight: approx. 19,400 kg

  • Engine: Yanmar

  • Steel tracks as standard, rubber pads optional

  • Dozer blade: optional, not standard

  • 10.4-inch touchscreen as standard

  • 360° surround-view camera system as standard

The standard steel tracks are suitable for outdoor areas and rough terrain. For work on industrial or concrete floors, the optional rubber pads are recommended.

Pick & carry with 3,500 kg – what it means in practice

The CC1908 travels 3,500 kg in pick & carry mode. For comparison: the CC985 and CC1485 are rated at 2,000 kg. The CC1908 therefore covers jobs in which loads between 2 and 3.5 tonnes have to be moved across the site without setting up outriggers.

This makes a direct difference on large projects: no outrigger areas to plan, no repositioning between lifts, no downtime in neighbouring areas. In adequately ventilated production halls, power plant buildings, tunnel or underground car park projects, this saves project time.

The fully hydraulic crawler undercarriage enables sensitive control even with heavy loads on uneven ground.

Applications

The CC1908 is the right crane when the 6-tonne class of the CC1485 is not sufficient and pick & carry above 2,000 kg is required:

  • Heavy industrial and plant installation: machine replacement in tight, adequately ventilated production halls, turbine and press installations with limited ceiling height, dismantling of heavy plant components during live operation

  • Infrastructure and bridge construction: setting heavy steel or precast concrete elements on sites without outrigger space for mobile cranes

  • Power plants and energy supply: lifting transformers, valve blocks and piping components in buildings with floor load restrictions

  • Specialist civil engineering: pick & carry for pipeline installation, drilling rig work or foundation projects in confined areas

  • Tunnelling and underground car park projects: lifting under ceiling height restrictions with adequate ventilation

Safety equipment

Standard equipment:

  • Programmable load moment limiter with working range limitation, adjustable virtual ceiling heights and obstacles

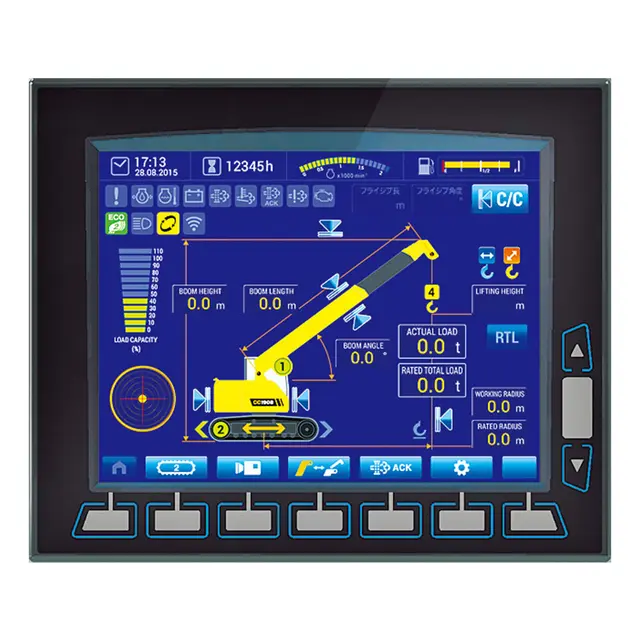

  • 10.4-inch touchscreen in the enclosed, air-conditioned operator cab with panoramic roof

  • 360° surround-view camera system, rear and front camera

  • Tipping alarm, acoustic and visual

  • Steel tracks as standard, rubber pads optional

  • Hydraulic safety valves on all cylinders

  • Overwind protection, winch

  • Slewing range limitation

  • Safety interlock

  • LED operating warning light and work lights

  • Data logger for complete job documentation

  • Emergency stop switch

Every rental machine is handed over serviced and inspected. On request, you receive a briefing on the machine at handover.

Hire the Maeda CC1908 from Luibl Rental

Luibl Rental delivers the CC1908 with its own low-loader fleet directly to your site; delivery and transport are organised as agreed. For long-term hire and large projects, we prepare individual quotations, with maintenance intervals included in the scope of services on request.

Service hours: Monday to Friday, 08:00–17:00

Enquiries via our contact form.

Frequently asked questions about the Maeda CC1908

What is the difference between the CC1908 and the CC1485?

The CC1485 lifts a maximum of 6,000 kg, the CC1908 8,100 kg. The more decisive difference is pick & carry: the CC1485 travels 2,000 kg, the CC1908 3,500 kg. The CC1908 is heavier at approx. 19,400 kg instead of approx. 14,400 kg. If the load is below 2 tonnes and weight or transport width are critical, the CC1485 or CC985 is the better choice.

Is the dozer blade standard on the CC1908?

No. The dozer blade is optional on the CC1908 – please contact us if you need it for your project.

Can the CC1908 be used in enclosed halls?

Fully enclosed halls without adequate ventilation are generally not suitable for diesel operation. For such situations, we advise on alternatives.

Which crane from the CC series suits my project? A brief overview:

  • CC423: up to 2,930 kg, pick & carry 1,465 kg, width 1,740 mm – for very narrow access routes

  • CC985: up to 4,900 kg, pick & carry 2,000 kg, width 2,320 mm – medium lifting capacity

  • CC1485: up to 6,000 kg, pick & carry 2,000 kg, width 2,490 mm – heavy loads, more compact

  • CC1908: up to 8,100 kg, pick & carry 3,500 kg – 8-tonne class

Contact us – we will help you choose the right machine.

Check availability now and request a quotation.
