MIK-299 | SPT299

Bild 0 einer Mietmaschine vom Typ MIK-299 | SPT299Bild 1 einer Mietmaschine vom Typ MIK-299 | SPT299Bild 2 einer Mietmaschine vom Typ MIK-299 | SPT299Bild 3 einer Mietmaschine vom Typ MIK-299 | SPT299Bild 4 einer Mietmaschine vom Typ MIK-299 | SPT299
Vorschaubild 0 einer Mietmaschine vom Typ MIK-299 | SPT299Vorschaubild 1 einer Mietmaschine vom Typ MIK-299 | SPT299Vorschaubild 2 einer Mietmaschine vom Typ MIK-299 | SPT299Vorschaubild 3 einer Mietmaschine vom Typ MIK-299 | SPT299Vorschaubild 4 einer Mietmaschine vom Typ MIK-299 | SPT299

Technical data

Below you will find all product details.

Lifting height
14,50 m
Lifting capacity
2.950 kg
Lateral reach
11,50 m
Dimensions
3,70 m x 0,90 m x 1,65 m
Weight
2.750 kg
Make
SPT
Model
SPT299
Article designation
SPT299

SPT299 technical data

ParameterValue
ManufacturerSPT
Max. lifting capacity2,950 kg
Working radius11.5 m
Max. hook height9.7 m (14.5 m incl. fly jib)
Gradeabilitymax. 20° or 36 %
Lifting below ground level10.0 m (4-fall reeving), 20.0 m (2-fall reeving), 40.0 m (1-fall reeving)
Rope length40 m (1-fall) / 20 m (2-fall) / 10 m (4-fall)

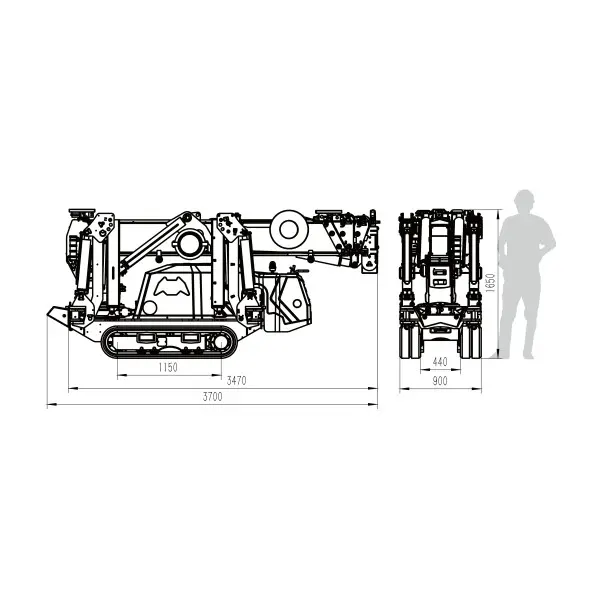

Dimensions (L x W x H)3.70 m x 0.90 m x 1.65 m
Min. footprint (outriggers extended)2.56 m x 3.26 m
DriveHybrid: diesel / electric 240 V
Diesel engineYANMAR 3TNV74F, 11.2 kW at 2,400 rpm
Operating weightapprox. 2,750 kg (2,980 kg with fly jib)
Standard equipmentAssembly tip, load hook, engine heater, radio remote control with digital load display, hour meter, 1/2/4-fall hook block, rubber tracks, 360° slewing range, over-hoist protection, load moment limiter, emergency stop

Applications of the SPT299

Glass and facade installation

Combined with a vacuum glass lifter, the SPT299 lifts large-format glass elements precisely into position. Its low overall height allows crane work even under low ceilings on the ground floor – an area where many comparable mini cranes reach their limits.

Industrial and plant maintenance

During repair and maintenance work on machines, pumps or units in production halls, the compact design provides access even between closely spaced installations.

Construction on confined sites

At a width of only 90 cm, the SPT299 fits through standard doors and narrow access routes where a conventional mobile crane can no longer manoeuvre.

Event and stage construction

For setting up and dismantling stage, lighting and sound equipment, the radio remote control allows the SPT299 to be operated precisely, without additional operating personnel at the crane itself.

Fly jib – additional reach for the SPT299

With the fly jib fitted, the maximum hook height of the SPT299 increases from 9.7 m to 14.5 m – a gain of almost 5 m in reach without switching to a larger crane model. This is particularly relevant for facade work on upper floors or for roofing, where a larger but less manageable crane would no longer fit through the available access routes. We will advise you on the right jib variant for your project.

Hire or buy the SPT299?

CriterionHire from Luibl RentalPurchase
Capital commitmentnone, predictable rental costshigh investment
Maintenance & serviceincludedyour own responsibility
Availabilityat short notice, across Europedelivery time depending on manufacturer
Flexibility for project sizeswitch to another model for each job possibletied to one model
Makes sense forproject-based, seasonal or occasional requirementspermanent, high-frequency use in your own fleet

For companies that do not need the SPT299 permanently in their own fleet, hiring is usually the more economical solution: inspection, maintenance and value retention lie with Luibl Rental rather than with your own company.

Why hire the SPT299 from Luibl Rental?

  • Part of the Luibl Rental Group: Since the acquisition of Uplifter by the Luibl Rental Group, you benefit from a Europe-wide rental and service network that goes beyond the previous Uplifter offering
  • Availability at short notice: enquire today, feedback on price and delivery date promptly
  • Europe-wide use: transport and set-up can also be organised across national borders
  • Maintenance & service included: no hidden follow-up costs, technical faults are handled by us

Frequently asked questions about the SPT299

What is the lifting capacity of the SPT299?

The SPT299 lifts a maximum of 2,950 kg at minimum working radius. The working radius is up to 11.5 m.

Does the SPT299 fit through narrow doors or tight access routes?

At a width of only 900 mm, the SPT299 fits through most standard doors and narrow site entrances where larger cranes can no longer manoeuvre.

How high can the SPT299 lift with the fly jib?

With the fly jib fitted, the SPT299 reaches a maximum hook height of 14.5 m; without the jib, the value is 9.7 m.

How quickly is the SPT299 available?

If available in our rental fleet, we deliver at short notice across Europe by appointment.

Request the SPT299 now

Check the current availability of the SPT299 for your project. Our team will get back to you promptly with price and delivery date.

Use and benefits

The drive concept supports a range of operating conditions.

Check availability now and request a quote.
