MIK-499 | SPT499

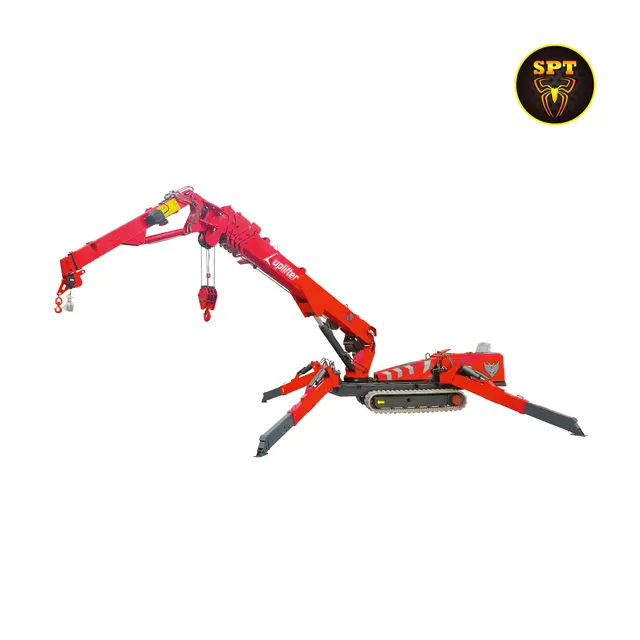

SPT499 hire – mini crane with 5,000 kg lifting capacity
The SPT499 belongs to the SPT crane series and lifts up to 5,000 kg. With a maximum hook height of 17.5 m (up to 24.3 m with fly jib) and a working radius of 16.5 m, the SPT499 is suited to lifting tasks that are already too heavy for smaller mini cranes but still too confined for a mobile crane. With a passage width of just 1.4 m, the crane still reaches compact construction sites and industrial facilities despite its high lifting capacity. At Luibl Rental you can hire the SPT499 at short notice, across Europe and with maintenance from a single source – as part of the Luibl Rental Group, which took over the operating business of Uplifter in February 2026.
SPT499 technical data
| Parameter | Value |
|---|---|
| Manufacturer | SPT |
| Max. lifting capacity | 5,000 kg |

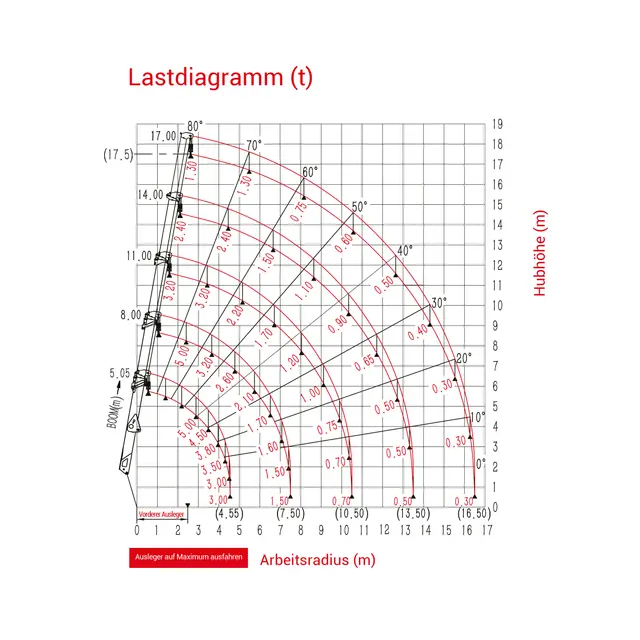

| Working radius | 16.5 m |

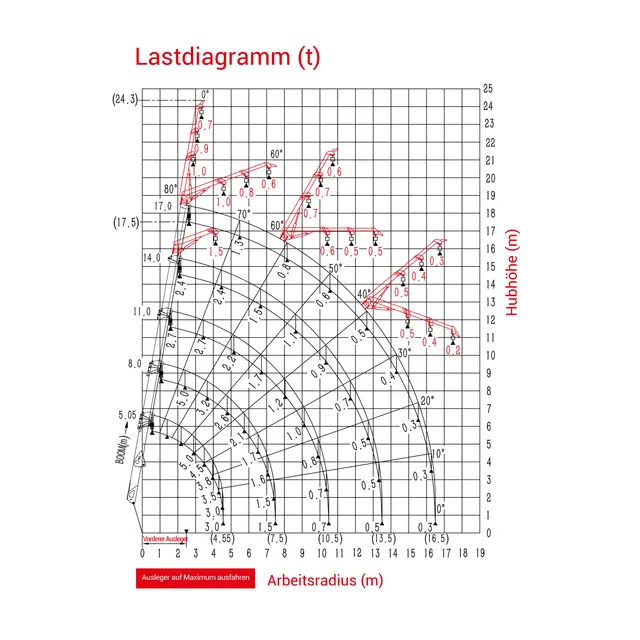

| Max. hook height | 17.5 m (24.3 m incl. fly jib) |
| Gradeability | max. 20° or 36 % |
| Lifting below ground level | 17.5 m (4-fall reeving), 35.0 m (2-fall reeving), 70.0 m (single-fall reeving) |
| Max. rope length | 70.0 m |

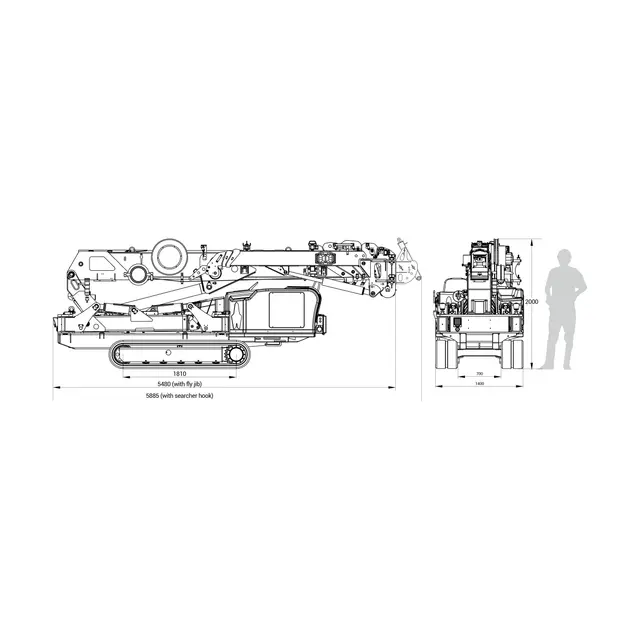

| Dimensions (L x W x H) | 5.48 m x 1.40 m x 2.00 m |
| Min. footprint (outriggers extended) | 4.45 m x 4.65 m |
| Drive | Hybrid: diesel / electric 380 V, 5-phase |
| Diesel engine | YANMAR 3TNV80F, 14.6 kW at 2,400 rpm |
| Dead weight | approx. 6,200 kg |
| Standard equipment | Searcher hook, load hook, engine heater, hybrid drive, radio remote control with integrated digital load display, hour meter, 1/2/4-fall hook block, black rubber tracks, 360° slewing range, over-hoist protection, hydraulic safety valves, level indicator, tilt alarm, emergency stop switch, load moment limiter, operating warning light, outrigger locking, toolbox |
Applications of the SPT499
Steel construction and machine installation
With 5,000 kg lifting capacity, the SPT499 lifts steel beams, machine parts and plant components that are already too heavy for smaller mini cranes. A documented field application shows the lifting of 1,000 kg steel walkways indoors over a reach of more than 10 m.
Industrial plants and production halls
When replacing heavy units, pumps or plant components, the combination of high lifting capacity and compact design (1.4 m width) provides access to areas that remain closed to larger cranes.
Structural work and precast construction
Precast parts, concrete elements and heavy components can be positioned precisely with the SPT499, even when the site offers no access for a mobile crane.
Glass and facade construction with large-format elements
In combination with a vacuum glass lifter, the SPT499 also lifts exceptionally heavy and large-format glass or facade elements that exceed the capacity of smaller mini cranes.
Event and stage technology for large projects
For erecting heavy stage structures and trusses at large events, the SPT499 offers sufficient reserve where more compact mini cranes reach their load limit.
Hire or buy the SPT499?
| Criterion | Hire from Luibl Rental | Purchase |
|---|---|---|
| Capital commitment | none, predictable rental costs | high investment |
| Maintenance & service | included | own responsibility |
| Availability | at short notice, across Europe | delivery time depends on manufacturer |
| Flexibility in project size | switch to a smaller model (e.g. SPT299) possible for each job | tied to one model |
| Makes sense for | project-based heavy-lift work or seasonal demand | permanent, high-frequency heavy-lift work in your own fleet |
As the SPT499 represents a higher investment than smaller mini cranes, hiring pays off especially for project-based requirements: you only pay for the actual period of use and save on maintenance, inspection and value retention.
Why hire the SPT499 from Luibl Rental?
- Part of the Luibl Rental Group: Since the takeover of Uplifter by the Luibl Rental Group, you benefit from a Europe-wide rental and service network
- High lifting capacity: 5,000 kg in a compact design – for tasks that push smaller mini cranes to their limits
- Availability at short notice: Enquire today, feedback on price and delivery date promptly
- Europe-wide use: Transport and set-up can also be organised across national borders
- Maintenance & service included: No hidden follow-up costs
Frequently asked questions about the SPT499
What is the lifting capacity of the SPT499?
The SPT499 lifts a maximum of 5,000 kg at minimum radius.
What is the difference from the Uplifter SPT299?
The SPT499 lifts around 2 t more than the SPT299 and reaches a greater hook height, but is also heavier and slightly wider (1.4 m instead of 0.9 m). For particularly narrow access areas the SPT299 is the better choice, for heavy loads the SPT499.
How high can the SPT499 lift with fly jib?
According to the manufacturer, the SPT499 reaches a maximum hook height of up to 24.3 m with the fly jib fitted.
How quickly is the SPT499 available?
If available in the rental fleet, we deliver at short notice across Europe by appointment.
Enquire about the SPT499 now
Check the current availability of the SPT499 for your project. Our team will get back to you promptly with price and delivery date.
