TB-287X | Zoomlion ZT26JE

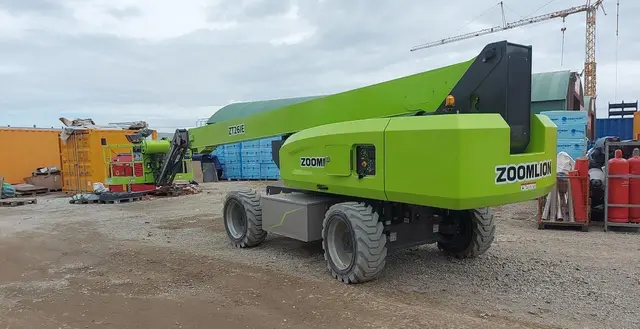

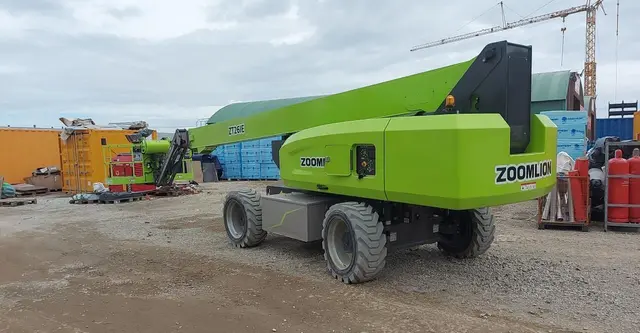

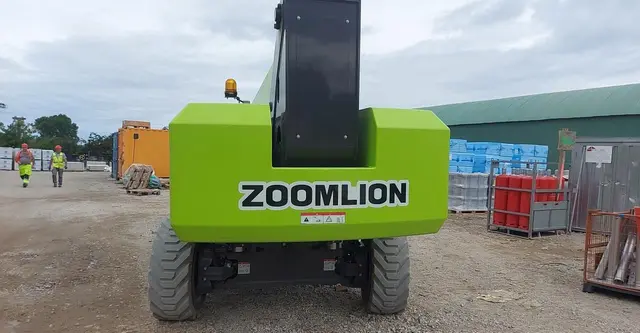

Zoomlion ZT26JE hire – electric telescopic boom lift with 28.7 m working height
The Zoomlion ZT26JE is a fully electric telescopic boom lift with 28.70 m working height, 22.10 m horizontal outreach and up to 454 kg capacity. It covers a height class that until now was almost exclusively reserved for diesel machines – while operating with zero local emissions. At Luibl you can hire the ZT26JE across Europe, with transport and familiarisation on request.
Almost 29 metres of working height – fully electric
A working height of almost 29 metres corresponds roughly to a nine-storey building. In this class, machines with zero local emissions were unavailable for a long time: the energy demand of the lifting system and drive was simply too high for a battery. The ZT26JE solves this with an 80-volt lithium-ion system that powers a 30 kW lift drive and a 5.2 kW travel drive. Charging is via a 5 kW charger.
For operators this means in practice: you can work at heights that previously required a diesel machine – and still stay in areas where exhaust fumes are not permitted. In running production halls, in city centres and emission-sensitive areas, or during night work near residential buildings, this is a decisive advantage.
22.10 m horizontal outreach
The horizontal outreach of 22.10 m is the standout feature of this machine. It lets you reach work points located far from a drivable set-up area: across railway tracks and pipe bridges, over water surfaces, basins or pits, over plant components that must not be driven over or dismantled, and over green areas that need to be protected.
The boom is complemented by a 1.83 m jib with a 130° swing range (−55° to +75°). This allows you to bring the platform to the work point from above or from the side instead of approaching head-on. The upper structure rotates continuously through 360°, and the platform can be rotated by ±90° – so you position the platform, not the entire machine.
Dual capacity up to 454 kg
The platform measures 2.44 × 0.91 m and carries up to 454 kg in the restricted working range and 300 kg in the full working range. This allows two fitters with tools and installation material to go up together – a key efficiency factor on a machine of this height, as every additional trip costs a corresponding amount of time.
Secondary Guarding System as standard
The ZT26JE comes with a Secondary Guarding System as standard – an additional protective device that prevents the operator from being trapped between the control panel and an obstacle. Especially when working beneath ceilings, girders and pipe runs, this is a relevant gain in safety.
Also on board as standard: tilt alarm, load sensing system, auto-levelling, emergency lowering, emergency stop, audible motion alarm, self-closing entry gate, flashing beacon and an on-board diagnostic system. The machine is CE compliant.
On request, you will receive a familiarisation on the machine at handover.
Off-road capable despite its size
Four-wheel drive, a permanently active oscillating axle, 0.41 m ground clearance and 45% gradeability (24°) bring the ZT26JE into position even across unpaved site ground. Foam-filled tyres rule out punctures, and the travel speed is up to 5.5 km/h.
Remarkable for a machine of this size is the tail swing of only 1.61 m. The turning radius is 3.11 m inside and 6.16 m outside. This means the lift can also be positioned along building edges and in narrow lanes where larger swing dimensions would require an additional cordoned-off area.
In stowed position the ZT26JE measures 11.91 m × 2.49 m × 2.82 m (L × W × H). With a weight of 17,600 kg and this length, transport needs to be planned; on request we take care of it completely – details under Transport.
Typical applications
Typical applications include industrial and plant installation, steel and hall construction, maintenance on crane runways and roof structures, facade and glazing work on taller buildings, maintenance of lighting, ventilation and sprinkler systems in large halls, work on bridges and infrastructure structures, and set-ups for trade fairs and events. Wherever great height, long outreach and zero-emission operation on site must come together, the ZT26JE is a suitable choice.
Hire the Zoomlion ZT26JE from Luibl
Are you planning a job in the 28-metre class? We check availability for your period, clarify the set-up area, ground loading and transport with you, and prepare an individual quote. If less height is sufficient, the Zoomlion ZT21JE-Li with 22.95 m and the Zoomlion ZT18JE-Li with 20.60 m are the more compact alternatives. You will find the complete range under Telescopic Boom Lifts.
Advantages of the Zoomlion ZT26JE
- 28.70 m working height fully electric – this height class without exhaust fumes on site
- Exceptionally long horizontal outreach of 22.10 m
- Dual capacity up to 454 kg, platform 2.44 × 0.91 m
- Secondary Guarding System as standard
- 1.83 m jib with 130° swing range
- Four-wheel drive, oscillating axle, 45% gradeability and 0.41 m ground clearance
- Only 1.61 m tail swing despite the machine size
- 360° continuous upper structure rotation, platform rotation ±90°
- 80 V lithium system with 5 kW charger, no fuel logistics
- Foam-filled tyres – no downtime due to punctures
Technical data
| Field | Value |
|---|---|
| Working height | 28.70 m |
| Platform height | 26.70 m |
| Horizontal outreach | 22.10 m |
| Capacity | 454 kg (restricted working range) / 300 kg (full working range) |
| Dimensions (L × W × H) | 11.91 m × 2.49 m × 2.82 m |
| Weight | 17,600 kg |
| Drive | Electric |
| Brand | Zoomlion |
| Model | ZT26JE |
| Item designation | TB-287X |
Platform size 2.44 × 0.91 m · platform rotation ±90° · turntable rotation 360° continuous · jib 130° (−55°/+75°), jib length 1.83 m · tail swing 1.61 m · wheelbase 2.80 m · track width 2.49 m · ground clearance 0.41 m · turning radius inside 3.11 m / outside 6.16 m · travel speed 5.5 km/h · gradeability 45% (24°) · battery 80 V Li-ion · charger 5 kW / 80 V · drive motor 5.2 kW · lift motor 30 kW · hydraulic tank 120 l · foam-filled tyres · max. wind speed 12.5 m/s · oscillating axle · four-wheel drive · Secondary Guarding System · CE compliant
Frequently asked questions about the Zoomlion ZT26JE
How high does the Zoomlion ZT26JE reach?
The Zoomlion ZT26JE reaches 28.70 m working height. The platform height is 26.70 m and the horizontal outreach 22.10 m.
How far does the ZT26JE reach sideways?
The horizontal outreach is 22.10 m. Together with the 1.83 m jib and 130° swing range, the machine can also reach work points behind or above obstacles.
Are there electric telescopic boom lifts with almost 29 m working height?
Yes. The Zoomlion ZT26JE is a fully electric telescopic boom lift with 28.70 m working height. It runs on an 80 V lithium-ion battery and operates with zero local emissions – at a height otherwise covered mainly by diesel machines.
How much can the ZT26JE lift?
In the restricted working range the platform carries up to 454 kg, in the full working range 300 kg. The platform measures 2.44 × 0.91 m.
What is a Secondary Guarding System?
A Secondary Guarding System is an additional protective device in the platform. It prevents the operator from being trapped between the control panel and an obstacle and triggers a stop on contact. On the ZT26JE it is part of the standard equipment.
What are the transport dimensions of the Zoomlion ZT26JE?
In stowed position the machine measures 11.91 m × 2.49 m × 2.82 m (L × W × H). Due to its length and weight, transport must be planned separately.
