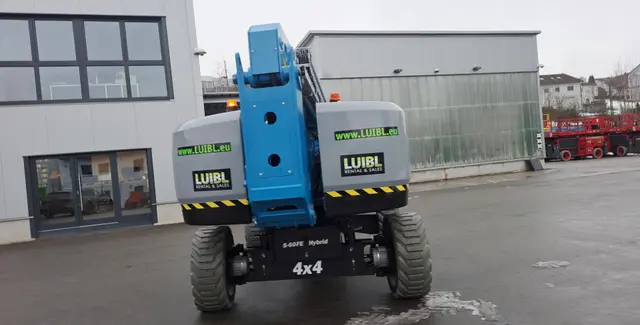

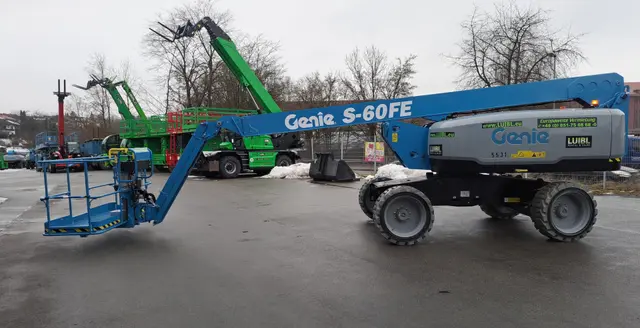

Genie S-60 FE



Genie S-60 FE hire – hybrid telescopic boom lift with 20.6 m working height
The Genie S-60 FE is a hybrid telescopic boom lift with a working height of 20.60 m, a horizontal outreach of 12.30 m and a capacity of 300 kg. Driving and lifting are handled by a 48-volt AC drive, so the machine basically works electrically. An on-board diesel generator recharges the battery as soon as the job lasts longer than one battery charge. This means a single machine covers two application profiles for which two lifts would otherwise be rented: locally emission-free work in battery mode indoors and grid-independent work on unpaved terrain. At Luibl Rental you can hire the S-60 FE across Europe, with transport and familiarisation on request.
20.60 m working height, 12.30 m outreach and a 1.83 m jib
With a working height of 20.60 m, the S-60 FE reaches the eaves of a five-storey building, trusses and installation levels in standard halls as well as lighting and ventilation systems under typical industrial ceilings. The maximum platform height is 18.60 m.
In practice, the horizontal outreach usually matters more than height alone: 12.30 m means you can reach the work point without positioning the machine directly underneath it – across green areas, track systems, rack aisles or stored components.
In addition, there is a 1.83 m jib with a 130° vertical range of motion. It lets you guide the work platform over an edge and down, or up to a ceiling structure from below – work points that a straight telescopic boom cannot reach. The turntable rotates 353°, the platform itself 160°. The platform measures either 2.44 × 0.91 m or 1.83 × 0.76 m, carries 300 kg without restriction and is rated for two persons including tools.
Hybrid drive: work electrically without sacrificing range
At Genie, the abbreviation FE stands for "Fuel Electric". The actual drive train is electric – 48 V AC, powered by an AGM battery pack with 48 V and 370 Ah. The diesel generator does not drive the machine but only charges the battery. When it is not running, there are no exhaust fumes and no engine noise on site.
This results in a usage pattern that a pure diesel lift does not offer and a pure battery lift only offers with planning effort: you can drive across the yard and move over the site with the generator running if needed, and carry out the actual work in the hall in pure battery mode. According to the manufacturer, one battery charge lasts a typical working day; the 64 l tank covers a considerably longer period. A power connection on the construction site is therefore not a requirement – a point that regularly slows down battery machines in shell construction.
For noise levels, Genie states 87 dB(A) at the ground station and 76 dB(A) on the platform for the FE variant with the generator running. The structurally identical pure battery version S-60 DC is below 70 dB(A) – this is the reference value for battery operation of the FE.
Typical situations this concept is built for:
- Installation and maintenance in production halls during ongoing operations
- City centres and areas sensitive to exhaust emissions
- Night and weekend work near residential areas
- Stadiums, event halls and other large enclosed spaces
- Construction sites that start outdoors on rough terrain and end indoors
8,051 kg – considerably lighter than comparable lifts in this height class
The S-60 FE weighs 8,051 kg. For comparison: the Genie S-65 from our rental fleet weighs 10,449 kg with a working height of 21.80 m. Around 2.4 t less makes a difference in three areas – the permissible floor load in halls, underground car parks and on slabs, the load on sensitive surfaces such as paving, artificial turf or screed, and transport.
The ground pressure with an occupied platform is 9.74 kPa, the tyre contact pressure 500 kPa. For work on surfaces with limited structural capacity, these are the values you should compare with the load-bearing specification of your structure.
Rough-terrain capable and manoeuvrable
On the S-60 FE, electric drive does not mean an indoor-only machine. The lift has four-wheel drive, handles gradients of up to 45% and has 0.46 m of ground clearance at the centre – a value that helps over kerbs, cable protectors and wheel ruts. Stowed, it travels at up to 6.44 km/h, with the platform raised at 1.1 km/h. The machine is fitted with 355/55D625 tyres.
When manoeuvring, the compact design counts: the turning radius is 3.06 m inside and 5.25 m outside, the tail swing 1.24 m with the riser raised and 1.57 m with the riser lowered. In tight yards or between rack rows, this lets you reach positions for which larger machines would have to be repositioned several times.
Transport and dimensions
Stowed, the S-60 FE measures 9.65 m × 2.49 m × 2.73 m (L × W × H). If the jib is folded under, the transport length is reduced to 7.16 m, while the height increases to 2.92 m. Both variants can be transported with standard equipment – which one is more economical depends on the clearance heights along your route. On request, we organise the entire transport; you can find details under Transport.
Safety and operation
The machine is operated via proportional joysticks that allow precise positioning of the platform. The hydraulic tank holds 68 l, and a 12 V auxiliary power unit is available for emergency lowering. The measured vibration is 0.34 m/s².
The machine is handed over serviced and inspected. On request, you will receive a familiarisation on the machine at handover.
Applications of the Genie S-60 FE
Typical applications in the 20-metre class are industrial installation and plant construction, hall and steel construction, electrical and ventilation installations at ceiling level, facade and painting work, tree care and landscaping as well as maintenance of lighting, sprinkler systems and fire detection systems. The S-60 FE plays to its strengths wherever a job demands both worlds: access and set-up on rough terrain, and work in an environment where exhaust fumes or noise are not permitted.
Hire the Genie S-60 FE
Are you interested in the Genie S-60 FE? We check availability for your project period and prepare an individual quote for you – including transport, familiarisation and return transport if required. You can find more machines of this type in our telescopic boom lifts category. Hybrid solutions with an articulated boom are available under hybrid articulated telescopic boom lifts.
Advantages of the Genie S-60 FE
- 20.60 m working height with 12.30 m horizontal outreach
- Hybrid drive: 48 V electric drive, diesel generator only recharges – can be used locally emission-free in battery mode, without a power connection
- According to the manufacturer, one battery charge per working day, 64 l tank for long operating intervals
- Only 8,051 kg – around 2.4 t lighter than the Genie S-65 in the same height class
- 1.83 m jib with 130° range of motion for work points behind and below obstacles
- 300 kg capacity without restriction, two persons
- Four-wheel drive, 45% gradeability, 0.46 m ground clearance
- Compact: 1.24 m tail swing, 3.06 m inside turning radius
- Turntable rotates 353°, platform rotates 160°
- Transport length 7.16 m with the jib folded under
Frequently asked questions about the Genie S-60 FE
How high does the Genie S-60 FE reach?
The Genie S-60 FE reaches a working height of 20.60 m. The platform height is 18.60 m and the horizontal outreach 12.30 m.
What does FE stand for on the Genie S-60 FE?
FE stands for "Fuel Electric" and refers to the hybrid drive. The machine drives and lifts electrically via a 48-volt drive; a diesel generator merely recharges the battery. A power connection on the construction site is therefore not required.
Is the Genie S-60 FE suitable for indoor use?
Yes. In pure battery mode, there are no exhaust fumes and no engine noise on site. Check the permissible floor load beforehand: the machine weighs 8,051 kg, and the ground pressure with an occupied platform is 9.74 kPa.
What is the capacity of the Genie S-60 FE?
The work platform carries 300 kg without restriction and is rated for two persons including tools. The platform measures either 2.44 × 0.91 m or 1.83 × 0.76 m.
Can the Genie S-60 FE be used on rough terrain?
Yes. Four-wheel drive, 45% gradeability and 0.46 m of ground clearance make the lift suitable for rough terrain. If required, the diesel generator recharges while driving.
What are the transport dimensions of the Genie S-60 FE?
Stowed, the machine measures 9.65 m × 2.49 m × 2.73 m (L × W × H). With the jib folded under, the length is reduced to 7.16 m and the height increases to 2.92 m. The weight is 8,051 kg.
