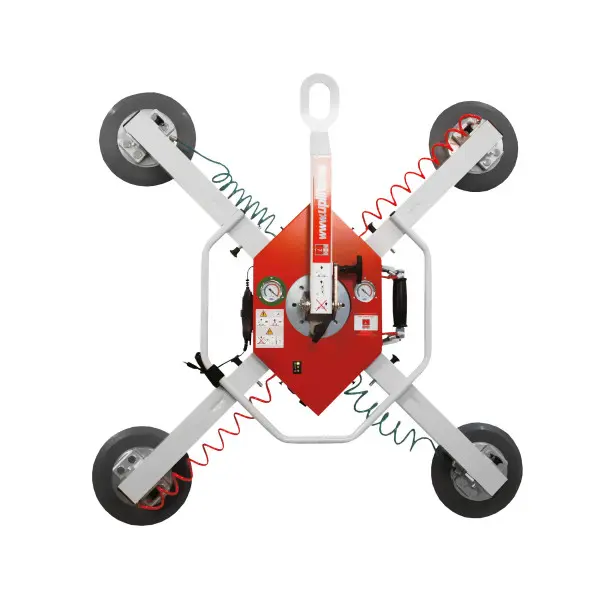

Uplifter UPG350 Vacuum Lifter Hire – Glass Vacuum Lifter up to 350 kg
The Uplifter UPG350 vacuum lifter (version UPG350-2) is an attachable glass vacuum lifter that can be hung from the load hook of almost any carrier machine – from mini crane and telehandler to excavator. With a horizontal load capacity of up to 350 kg and silicone-free suction pads, it lifts glass panes, panels and facade elements precisely and without leaving residue. As owner of the Uplifter brand, Luibl Group rents out the UPG350 at short notice, serviced, inspected and throughout Europe.
Technical data: Uplifter UPG350 vacuum lifter
The values are taken from the official Uplifter product data. We confirm binding specifications for your carrier machine and component on request.
| Feature | Value |
|---|---|
| Max. horizontal load capacity | 350 kg |
| Max. vertical load capacity | 300 kg |
| Design | modular, adaptable to load and format |
| Rotation | manual 360°, detent every 45° |
| Tilting | manual through 90° |
| Suction pads | 4, silicone-free (no marks) |
| Mounting | on any machine with a load hook (crane, mini crane, telehandler, excavator) |
| Safety system | 2 independent vacuum circuits with acoustic warning signal |
| Power supply | 12 V battery, independent of mains power |
| Operating time | up to 8 hours |
| Dead weight | approx. 43 kg |
| Dimensions | length 0.70–1.75 m; width 0.70–1.38 m |
Design and operation
The UPG350 generates a vacuum that holds the load securely via silicone-free suction pads. Because the lifter has a modular design, it can be adjusted to the respective pane format. Manual 360° rotation with a detent every 45° allows a pane to be turned from the pick-up position into the installation position without repositioning the carrier machine. The difference from a self-propelled glass lifter: the UPG350 has no travel or lifting system of its own but uses the reach and lifting power of the carrier machine – which makes it light, flexible and quick to relocate.
Suitable carrier machines
The UPG350 can be attached to practically any lifting device with a load hook. In practice, companies most often combine it with a mini crane for confined job sites, with a telehandler for greater heights and reaches or with an excavator on the building shell. Luibl Group keeps suitable carrier machines for all variants in its rental fleet.
Applications
- Window and facade construction: residue-free installation of insulating glass up to 350 kg.
- Glazing & repair: pane replacement using an existing crane or telehandler.
- Interior fit-out: handling glass walls and panels where a carrier machine is already on site.
- Landscaping & shell construction: laying natural stone, concrete and slab elements with an excavator.
Advantages of hiring from Luibl
As owner of Uplifter, Luibl supplies the UPG350 directly from the manufacturer's side and ready for use:
- Vacuum lifter and carrier machine from a single source: on request including a suitable mini crane or telehandler.
- Handed over inspected: inspection and maintenance included.
- Available at short notice: use throughout Europe by arrangement.
- Advice: we check whether the UPG350 suits your existing lifting equipment.
Hire or buy a vacuum lifter?
Hiring covers inspection and maintenance and leaves you free to use the right vacuum lifter model for each project.
| Criterion | Hire from Luibl | Purchase |
|---|---|---|
| Investment | project-based | one-off, tied up |
| Inspection | included | own effort |
| Carrier machine | can optionally be hired as well | must be kept separately |
| Choice of model | UPG350 to UPG1200 | one model |
Safety
The UPG350 is handed over serviced and inspected; Luibl carries out and documents the periodic inspection. When attaching it to the carrier machine, observe the machine's load limits and the permissible load centre – we advise on this at handover. You receive the inspection records together with the unit.
Further vacuum lifters and carrier machines
Larger loads are lifted by the UPG450 and UPG600 models and, for heavy loads, the UPG1000. Anyone looking for a self-propelled glass robot instead of an attachment will find it in the Glassworker series. A mini crane is suitable as a carrier machine. The basics are explained in the guide Vacuum lifters – technology & types.
Frequently asked questions about the Uplifter UPG350
Which machines can the UPG350 be attached to?
To almost any lifting device with a load hook – such as a mini crane, telehandler, excavator or crane. On request, Luibl Group also supplies the suitable carrier machine.
How much can the UPG350 lift?
The horizontal load capacity is up to 350 kg, the vertical up to 300 kg.
Do the suction pads leave marks on the glass?
No, the suction pads are silicone-free and leave no marks.
Can I hire the vacuum lifter and carrier machine together?
Yes. As Luibl also rents out mini cranes and telehandlers, you get the vacuum lifter and carrier from a single source.
Is the UPG350 inspected?
Yes, every unit is serviced and inspected; we hand over the records with it.
Request the Uplifter UPG350 now
Request your non-binding rental quote for the UPG350 – we will check availability and the combination with your carrier machine.
