TSR-5030 | Merlo Roto 50.30S Plus

Bild 0 einer Mietmaschine vom Typ TSR-5030 | Merlo Roto 50.30S PlusBild 1 einer Mietmaschine vom Typ TSR-5030 | Merlo Roto 50.30S PlusBild 2 einer Mietmaschine vom Typ TSR-5030 | Merlo Roto 50.30S PlusBild 3 einer Mietmaschine vom Typ TSR-5030 | Merlo Roto 50.30S PlusBild 4 einer Mietmaschine vom Typ TSR-5030 | Merlo Roto 50.30S Plus
Vorschaubild 0 einer Mietmaschine vom Typ TSR-5030 | Merlo Roto 50.30S PlusVorschaubild 1 einer Mietmaschine vom Typ TSR-5030 | Merlo Roto 50.30S PlusVorschaubild 2 einer Mietmaschine vom Typ TSR-5030 | Merlo Roto 50.30S PlusVorschaubild 3 einer Mietmaschine vom Typ TSR-5030 | Merlo Roto 50.30S PlusVorschaubild 4 einer Mietmaschine vom Typ TSR-5030 | Merlo Roto 50.30S Plus

Technical data

Below you will find all product details.

Lifting height
29,20 m
Lateral reach
25,40 m
Lifting capacity
4.950 kg
Dimensions
7,79 m x 2,49 m x 3,16 m
Weight
20.500 kg
Make
Merlo
Model
R 50.30 Plus
Drive unit
Diesel
Article designation
TSR-5030

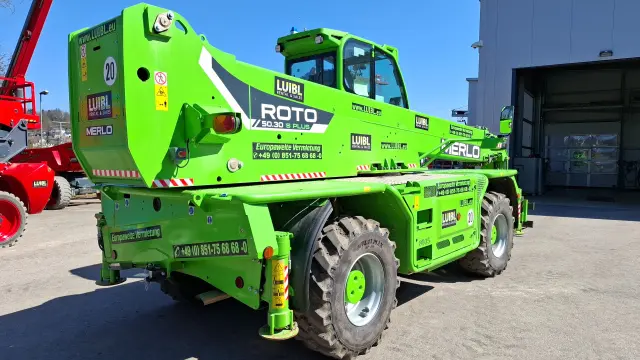

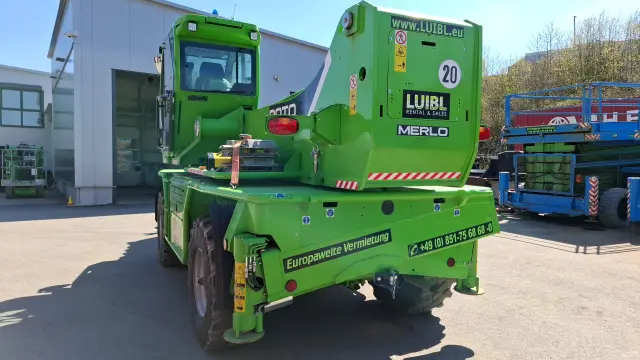

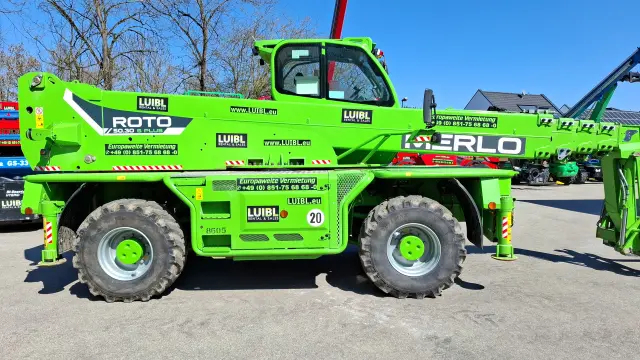

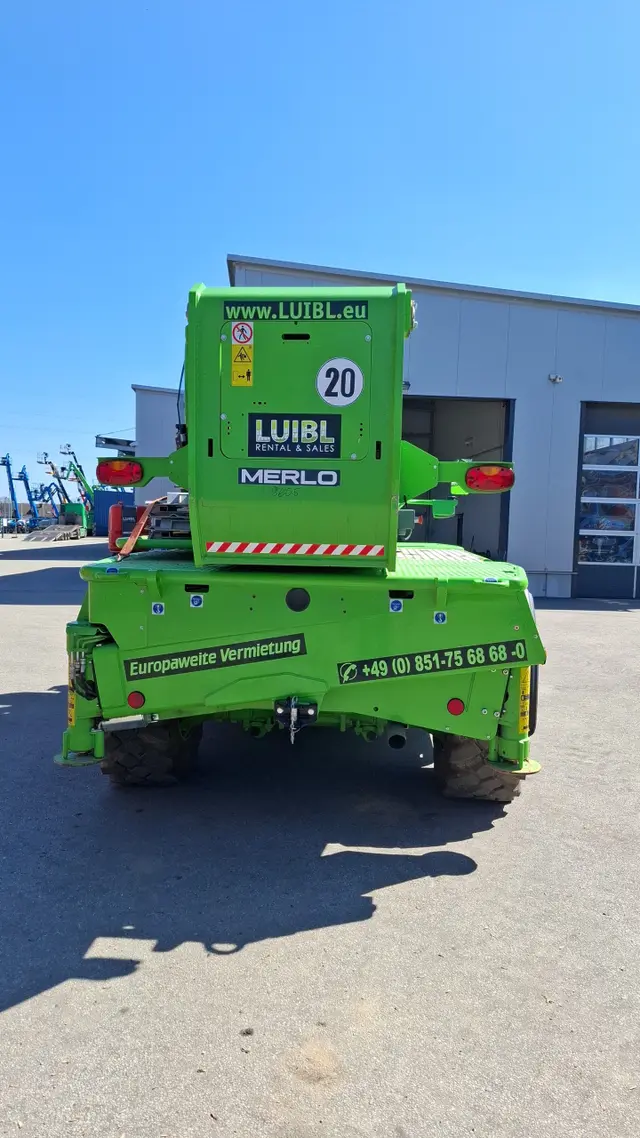

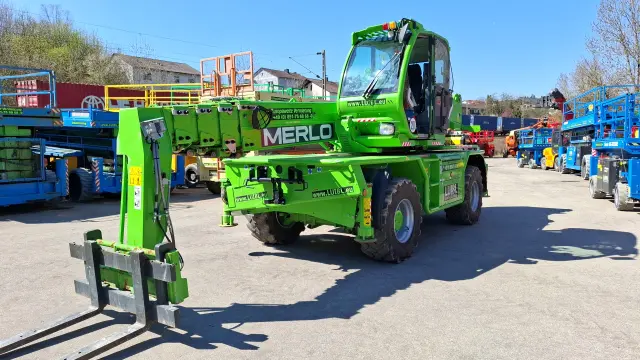

The Merlo Roto 50.30S Plus - A powerful rotating telehandler

With a rated capacity of 4.95 tonnes at LC (load centre), the Merlo Roto 50.30S Plus offers an impressive lifting capacity. The 445/65-R22.5 tyres ensure optimum traction and stability in various working environments. The telescopic boom of the Merlo Roto 50.30S Plus consists of three sections and provides an outreach of 25.4 metres. A load of up to 0.4 tonnes can be lifted at the point of maximum outreach. With a lift height of 29.2 metres, the telehandler can safely lift heavy loads of up to 2 tonnes. With a dead weight of 20.5 tonnes, the Merlo Roto 50.30S Plus provides a stable and solid base for demanding tasks. The compact transport dimensions of 7.79 metres in length, 2.49 metres in width and 3.16 metres in height allow easy transport to different job sites. With a travel speed of 40 km/h, the Merlo Roto 50.30S Plus is a fast and agile telehandler that enables efficient work. The telehandler is equipped with a fully automatic hydrostatic transmission that ensures smooth operation and precise control. The Merlo Roto 50.30S Plus features a comprehensive safety system, including fully electronic control of all functions (ASCS), which enables precise and safe operation. The stability control with audiovisual signal and overload cut-off on wheels and outriggers ensures additional safety during operation. With its powerful engine, which has 4 cylinders and a displacement of 4.5 litres, the Merlo Roto 50.30S Plus delivers an impressive output of 125 kW (170 hp). The engine is equipped with an oxidation catalyst, an SCR catalyst with AdBlue injection and a diesel particulate filter (DOC + SCR + DPF). The cab of the Merlo Roto 50.30S Plus is designed to be comfortable and safe. It offers excellent all-round visibility, an adjustable seat with seat belt and meets the ROPS/FOPS safety standards. Electronic control is via a joystick with capacitive enabling and direction switch for precise and intuitive operation.

Key technical data

  • Lift height: 29.2 m
  • Capacity: 4,950 kg
  • Horizontal outreach: 25.4 m
  • Width: 2.49 m
  • Height: 3.16 m

Check availability now and request a quote.
