Rent narrow-aisle scissor lifts - for high-bay warehouses up to 33 m working height

High-bay warehouses have their own physics: aisles less than a metre wide, floors with defined point-load limits, racking reaching double-digit heights in metres and fire protection systems that make every metre of platform area a challenge. Standard scissor lifts are not built for this environment. Narrow-aisle scissor lifts are.

Luibl rents out narrow-aisle scissor lifts from Holland Lift, Magni, PB Lifttechnik and HAB with working heights from 18.5 m to 33 m and widths from 0.76 m - exclusively with electric drive and non-marking tyres.

An electric scissor lift for indoor use typically has a platform width of 0.80 m to 1.20 m and reaches a maximum of 12 m. That is enough for hall installations or building maintenance - but not for the demands of an automated high-bay warehouse.

Narrow-aisle scissor lifts solve four specific problems at once:

Extremely narrow at great height. The Holland Lift HL330 E14 4WDS reaches 33 m working height with a machine width of 1.40 m. Machines in the HL285 class drive through aisles from 1.50 m at 28.2 m working height. Small models such as the Holland Lift N-165EL (18.5 m) are just 0.76 m wide.

Driving under load at full height. In high-bay warehouses, mobility when elevated is not a convenience - it is an operating mode. Maintenance teams drive along entire rows of racking without lowering the platform in between. This function considerably reduces working time on the floor.

Load capacity for heavy tools and materials. Models such as the Magni ES3225RT or the HAB S225-24 E4WDS carry 750 kg to 1,000 kg on the platform. If you replace sprinkler heads, change conveyor components or carry heavy tools, you need this reserve.

Operation with no local emissions on sensitive floors. High-bay warehouses often have coated or sealed industrial floors. Non-marking tyres leave no residue. Electric drive means no exhaust fumes, no odour nuisance and no increased CO2 levels in enclosed halls.

Luibl has one of the largest rental fleets of narrow-aisle scissor lifts in Central and Western Europe. The available models cover all relevant height and width classes.

Holland Lift - the benchmark for narrow-aisle stability

Among logistics planners, Holland Lift is the reference brand when it comes to great heights and maximum stability. The Dutch machines are designed for continuous use in high-bay warehouses - with a chassis that works precisely even on uneven industrial floors.

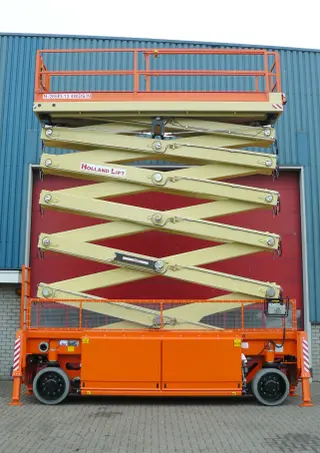

The HL330 E14 4WDS is the top model: 33 m working height, 6.40 m × 1.40 m platform, 600 kg load capacity, electric drive. It fits through aisles from 1.60 m wide, making it the choice for high-bay warehouses with standardised narrow-aisle systems.

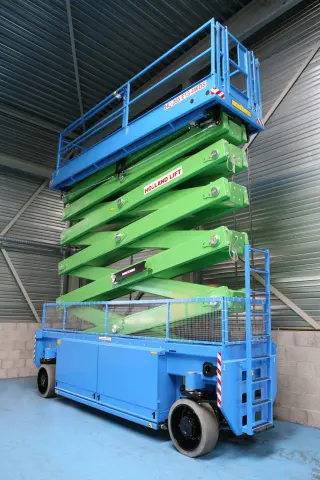

The HL285 E13 4WDS covers the 28 m class: 28.2 m working height, 5.41 m platform depth, 750 kg load capacity with a machine width of 1.30 m. For buildings that do not need 33 m but demand the highest precision on difficult floors.

The N-165EL serves the lower class: 18.5 m working height with a width of only 0.76 m, 500 kg load capacity. The model of choice for narrow-aisle warehouses in the 18 m class and for installation work in existing storage structures that are too tight for standard machines.

Magni ES series - performance for medium to great heights

With the ES series, Magni offers machines with generously sized platforms and modern control technology.

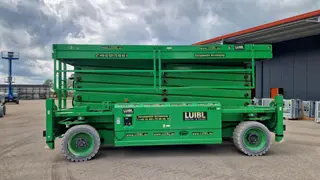

The ES3225RT reaches 32 m working height with a platform size of 8.30 m × 6.20 m and 1,000 kg load capacity - the highest load capacity in Luibl's entire narrow-aisle rental fleet. Ideal for logistics halls with heavy conveyor equipment.

The ES2223RTP (22 m working height, 7.65 m platform length, 750 kg) and the ES2212 (22 m, 6.10 m platform, 600 kg) cover the medium height class.

PB Lifttechnik - reliable all-rounders in the 22 m and 32 m classes

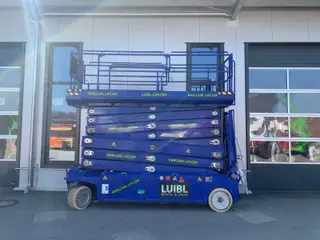

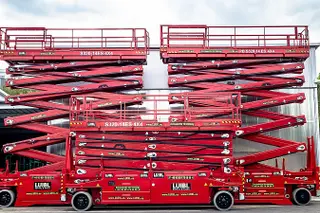

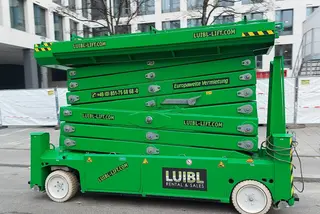

PB machines, made in the Netherlands, offer a consistently high level of safety with compact dimensions. The PB S320-14ES 4×4 (32 m working height, 7.65 m platform, 750 kg, 1.20 m machine width) is one of the most sought-after machines in the portfolio. In the 22.5 m class, the models PB 225-12E (450 kg) and PB 225-12ES (450-600 kg) are available.

HAB - wide choice in all height classes

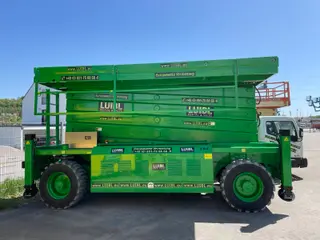

HAB complements the portfolio with machines in three height classes. The HAB S320-12E 4WDS (32.4 m, 600 kg) and the HAB S280-12E 4WDS (28 m, 600 kg) cover the upper range. In the 22.5 m class, models are available with 600 kg and - in the heavy-duty version HAB S225-24 - with 750 kg load capacity.

Intralogistics and warehouse planning. Maintenance of conveyor systems, sprinkler systems and lighting above active storage locations. What matters here is that the machine does not block the storage structure and can be manoeuvred between the racks.

E-commerce logistics. Busy distribution centres with automated storage technology require regular maintenance at great heights. The combination of narrowness and load capacity is indispensable in this segment.

Cold stores and freezer warehouses. Special hydraulic oils and low-temperature batteries enable operation below zero degrees. Luibl advises which models are suitable for which temperature classes.

Industrial halls - lighting, ventilation, fire protection. Tall factory halls with narrow column bays need slim machines. Installing or maintaining lighting systems, sprinkler heads or ventilation ducts at 25 m and above is hardly efficient without narrow-aisle scissor lifts.

Stocktaking. Narrow-aisle scissor lifts can be moved along entire rows of racking without lowering the platform. This makes systematic stock checks of the top storage levels considerably faster.

Narrow-aisle scissor lifts from 28 m working height have a dead weight of 8 t to almost 24 t. In high-bay warehouses, industrial floors are designed for specific distributed loads, not for concentrated point loads.

The following points should be clarified before renting:

• Permissible point load of the hall floor (kN/m² or t/m²) - the manufacturer's certificate or structural calculation is usually held by the building owner

• Aisle width in the usable area - clear dimension between the rack uprights, not the module width

• Ceiling height and space for the platform when elevated

• Floor condition - epoxy resin, sealed concrete, concrete slabs - relevant for the choice of tyres

Luibl advises on machine selection based on these parameters. For complex buildings, a technician can assess the operating conditions in advance on request.

Luibl is not the only rental company for scissor lifts in the Netherlands, Germany and Austria. But in the segment of narrow-aisle specialist machines from 22 m, a portfolio of this depth is relatively rare from a single provider.

Rental fleet. Holland Lift, Magni, PB Lifttechnik and HAB in all relevant height classes - generally young machines with a documented maintenance history.

Logistics. Narrow-aisle scissor lifts from 28 m are among the heaviest and bulkiest machines in the rental fleet. Luibl transports with its own low-loaders - delivery throughout the Netherlands. That means no dependence on subcontractors for time-critical project deliveries.

Advice. The technical preparation - floor loading, aisle width, load capacity requirement - is more demanding for narrow-aisle machines than for standard machines. Luibl clarifies these points in advance so that the machine fits on its first job.

Instruction. Anyone operating a narrow-aisle scissor lift for the first time needs a briefing. Luibl provides an operator briefing on handover - for all machine types, including specifically for narrow-aisle scissor lifts.

For projects with narrow-aisle scissor lifts, we recommend a direct enquiry with the following details: working height, aisle width, load capacity required, period of use and job location. The more precise the details, the faster Luibl can prepare a suitable quote.
